Amplifier pinout diagram

January 20, 2003

Reading time ~1 minute

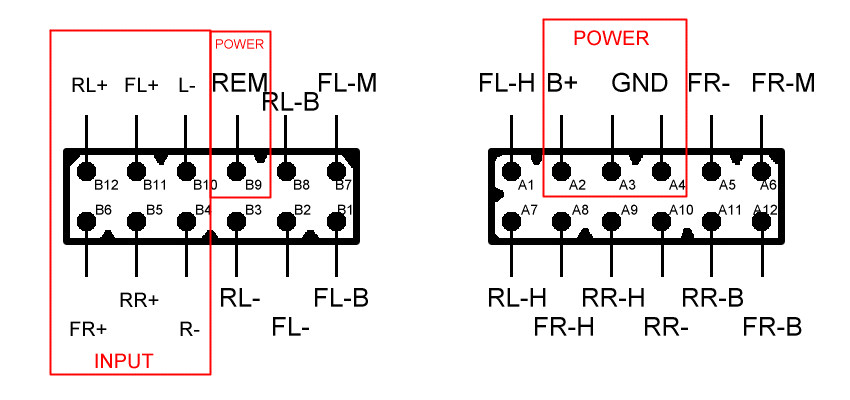

If you ever need to connect an aftermarket amp to your head unit, it might be useful to know the pinout of the amplifier which you will find behind the carpet trim on the left hand side of the boot. Here is the diagram I drew. The view is looking into the end of the disconnected plugs, the one on the left goes into the black socket of the amp, the one on the right goes into the white socket. Between them you will find a 10 amp blade fuse.
